Product Description:
With a rated current range of 10A to 63A, the Solar PV Fuse is suitable for a wide range of applications. It is available in 10 different current ratings, including 10A, 12A, 15A, 16A, 20A, 25A, 30A, 32A, 40A, 50A, and 63A, ensuring that you can find the right fuse for your specific needs.
The fuse element material is made of a combination of silver, copper, and silica, providing excellent conductivity and low resistance. This ensures that the fuse can handle high current levels without overheating or melting, providing reliable protection for your solar PV system.

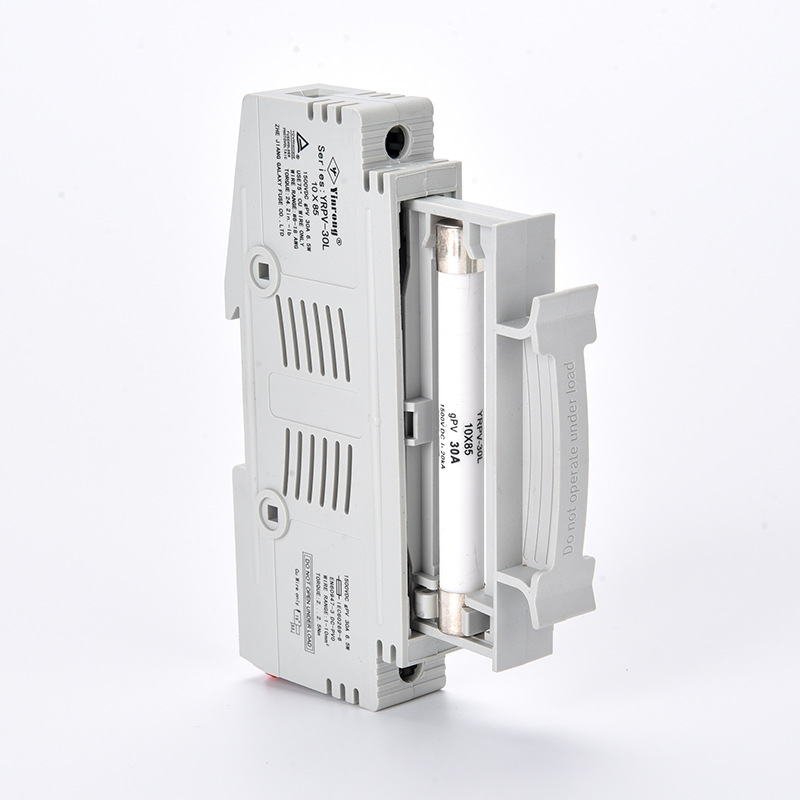

The Solar PV Fuse is designed for easy installation, using a DIN rail solar fuse holder. This holder provides a secure and reliable way to install the fuse, ensuring that it stays in place and functions as intended. The holder is designed to be compatible with a wide range of DIN guide fuse holders, making it easy to install in any solar PV system.
Overall, the Solar PV Fuse is an essential component for any solar PV system. It provides reliable protection against overcurrent, overvoltage, and short circuits, ensuring the safety and reliability of your solar PV system. With its high-quality ceramic body, combination of silver, copper, and silica fuse element material, and easy-to-install DIN rail solar fuse holder, the Solar PV Fuse is an excellent choice for anyone looking to protect their solar PV system.
Features:
- Product Name: Solar PV Fuse
- Breaking capacity: 30kA
- Use for: Solar Photovoltaic Inverter
- Fuse Size: 10x38mm, 14x51mm, 14x65mm, 10x85mm
- Standard: IEC60269.6
- Working temperature: -50~105°C
- High voltage solar fuse
- Solar panel thermal fuse
Technical Parameters:
| Technical Parameter | Value |
| Fuse Size | 10x38mm,14x51mm,14x65mm, 10x85mm |
| Rated Voltage | 1000VDC 1500VDC 500VDC |
| Use for | Solar Photovoltaic Inverter |
| Fuse Element Material | Silver/Copper/silica/ |
| Fuse Body Material | Ceramic |
| Fuse Shape | Cylindrical Fuse |
| Working Temperature | -50~105°C |
| Weight | 20g |
| Be Suitable for | Photovoltaic Bus Box, Photovoltaic Module Protection |
| Standard | IEC60269.6 |
Applications:
The SINOPV RLPV JULUN Solar PV Fuse is a cylindrical fuse designed for use in solar systems. It is made in China and is available in various models, including 2A, 3A, 5A, 6A, 8A, 10A, 12A, 15A, 20A, 25A, and 30A. The fuse is available in three rated voltages: 500VDC, 1000VDC, and 1500VDC.
The Solar PV Fuse is available in four sizes: 10x38mm, 14x51mm, 14x65mm, and 10x85mm. The fuse element is made of silver, copper, or silica, depending on the model. The weight of the fuse is 20g. The fuse shape is cylindrical.
The Solar PV Fuse is designed for high voltage solar systems. It is a critical component that protects the solar panels and other components from overvoltage, overcurrent, and short circuits. The fuse is designed to break the circuit when a fault occurs in the system, preventing damage to the system and the surrounding environment.
The Solar PV Fuse is suitable for a range of application occasions and scenarios. The 10x38mm gPV 1000VDC 32A fuse is suitable for use in small solar systems, while the 14x51mm 25A 1500VDC solar system fuse and fuse holder can be used in larger solar systems. The 14x65mm and 10x85mm fuses are suitable for use in industrial and commercial solar systems.
The Solar PV Fuse is also suitable for use in off-grid and grid-tied solar systems. It can be used in residential, commercial, and industrial solar systems. The Solar PV Fuse is a reliable and cost-effective solution for protecting solar systems.
Customization:
Brand Name: SINOPV RLPV JULUN
Model Number: 2A 3A 5A 6A 8A 10A 12A 15A 20A 25A 30A 500VDC 1000VDC 1500VDC10*38mm 14*51mm 10*85mm 14*65mm
Place of Origin: China
Installation mode: Din Guide Fuse Holder
Fuse Element Material: Silver/Copper/silica/
Be suitable for: Photovoltaic Bus Box, Photovoltaic Module Protection
working temperature: -50~105°C
Rated Voltage: 1000VDC 1500VDC 500VDC
Our customization services also include:
- Marine solar fuse
- 10*38mm gPV 1000VDC 32A FUSE
- Cylindrical 14*51mm 25A 1500VDC solar system fuse and fuse holder
Support and Services:
The Solar PV Fuse product provides technical support and services to ensure the proper operation and maintenance of the fuse. Our team of experts is available to assist with any questions, concerns, or issues that may arise during installation or operation of the product.
We offer:
- Assistance with product selection and sizing
- Installation guidance and support
- Troubleshooting and technical assistance
- Product repair and replacement services
- Warranty and product support
Our goal is to provide our customers with the highest level of service and support to ensure their satisfaction with our product.
FAQ:
1. What is the brand name of the Solar PV Fuse product?
The brand name of the Solar PV Fuse product is SINOPV RLPV JULUN.
2. What are the available models for the Solar PV Fuse product?
The available models for the Solar PV Fuse product are 2A, 3A, 5A, 6A, 8A, 10A, 12A, 15A, 20A, 25A, 30A, 500VDC, 1000VDC, 1500VDC, 10*38mm, 14*51mm, 10*85mm, and 14*65mm.
3. Where is the Solar PV Fuse product manufactured?
The Solar PV Fuse product is manufactured in China.
4. What is the voltage rating of the Solar PV Fuse product?
The Solar PV Fuse product is available in voltage ratings of 500VDC, 1000VDC, and 1500VDC.
5. What are the dimensions of the Solar PV Fuse product?
The dimensions of the Solar PV Fuse product are 10*38mm, 14*51mm, 10*85mm, and 14*65mm.
