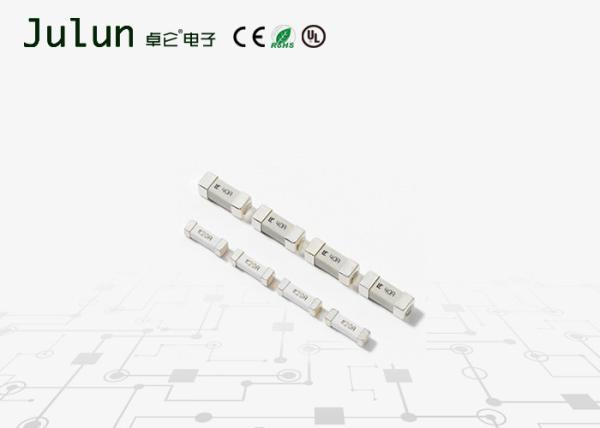

Very Fast Acting Subminiature Surface Mount Fuse 456 Series Square High Current
Fuse_456_Datasheet.pdf
456 Series High Current Fuse is a small square surface
mount fuse that is designed to support higher current
requirements of various applications.
Features
• Surface mount high current fuse
• Fully compatible with lead-free solder alloys and higher temperature profiles associated with lead-free assembly
• RoHS compliant and Halogen Free
• Available in ratings of 20 to 40 Amperes
Applications
• Voltage regulator module for PC server
• Cooling fan system for PC server
• Storage system power
• Basestation power supply
Electrical Characteristics for Series
| % of Ampere Rating | Opening Time |
| 100% | 4 hours, Minimum |
| 200% | 60 seconds, Maximum |
Electrical Specifications by Item
| Ampere Rating | Amp Code | Max Voltage Rating | Interrupting Rating | Nominal Cold Resistance | Nominal Melting | Nom Voltage Drop |
| 20 | 20 | 125 | 100A @125VAC
300A @ 65VAC
300A @ 100VDC
1000A @ 32VDC
500A @ 72VDC | 0.0023 | 18 | 64.7 |
| 25 | 25 | 125 | 100A @ 125VAC
300A @ 65VAC
500A @ 72VDC
1000A @ 32VDC | 0.00192 | 45 | 68.38 |
| 30 | 30 | 125 | 100A @ 125VAC
300A @ 65VAC
1000A @ 32VDC
500A @ 72VDC | 0.00132 | 81 | 69.9 |
| 40 | 40 | 72 | 180A @ 72VDC
600A @ 60VDC | 0.00105 | 191 | 55 |
Dimensions
