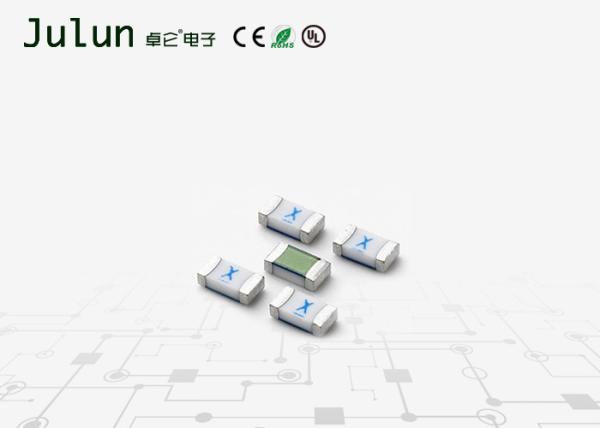

469 Series - 1206 Specified Surface Mount Ceramic Fuse Small High Current Inrush Protection

Name: 469 Series 1206 Specified Surface Mount Ceramic Fuse Small High Current Inrush Protection
Brand: Julun
Price: 1 USD

Brand Name : Julun

Model Number : 469

Certification : CE/UL/VDE/KC/ROHS

Place of Origin : CHINA

MOQ : 100 / Negotiable

Price : Negotiable

Payment Terms : L/C, D/P, T/T,

Supply Ability : 10000/Piece/Weekly

Delivery Time : 7~10 Working days

Packaging Details : Standard carton

Decoupling ability : Fast

Current range : 2A~8A

Material : Ceramics

Rated voltage : 24V~63V

Certified : UL / PSE

Contact Now

469 Series - 1206 Specified Surface Mount Ceramic Fuse Small High Current Inrush Protection

Fuse_469_Datasheet.pdf

The 469 Series is a 100% Lead-free, RoHS compliant and Halogen-free fuse series designed specifically to provide over-current protection to circuits that operate under high working ambient temperature up to 150ºC. The general design ensures excellent temperature stability and performance reliability.

Features
• Operating Temperature from -55ºC to +150ºC
• 100% Lead-free, RoHS compliant and Halogenfree
• Suitable for both leaded and lead-free reflow / wave soldering

Applications
• LCD Displays • Servers • Notebook Computers • Printers • Scanners • Data Modems • Gaming Consoles

Electrical Characteristics for Series

% of Ampere Rating	Ampere Rating	Opening Time
100%	2A – 8A	4 hours, Minimum
200%	2A – 8A	1 sec., Min.; 120 secs., Max.
300%	2A – 8A	0.1 sec., Min.; 3 secs., Max.
800%	2A – 8A	0.002 sec., Min.; 0.05 sec., Max.

Electrical Specifications by Item

Ampere Rating	Amp Code	Max.Voltage Rating	Interrupting Rating	Nominal Resistance	Nominal Melting I2t	Nominal Voltage Drop At Rated	Nominal Power Dissipation At Rated Current
2	2	63	60 A @ 63 VDC	0.166	0.225	0.455	0.91
4	4	32	60 A @ 32 VDC	0.052	3.56	0.236	0.944
5	5	32	60 A @ 32 VDC	0.033	5.62	0.216	1.08
6	6	24	60 A @ 24 VDC	0.026	9.41	0.274	1.644
7	7	24		0.02	14.4	0.216	1.512
8	8	24		0.016	23.72	0.233	1.864

Dimensions

469 Series - 1206 Specified Surface Mount Ceramic Fuse Small High Current Inrush Protection

FAQ

1.What is your MOQ?
A: We provide you small MOQ for each item, it depends your specific order.
2.What is your delivery date?
A: The delivery date is about 2-7days after receipt of payment.
3.What is your payment terms?
A: We accept T/T, western union, ,70% deposit in advance and 30% balance before
shipment.
4.Can you send free samples?
A: Yes, free samples are available; you just need to pay the express fee. You can provide your
a/c like DHL, or you can call your courier to pick up from our office.
5.How do you carry out quality control?
A: Quality is our priority. Our QC always attach great importance to quality control from the
very beginning to the end.
6.Can you accept OEM orders?
A: Yes, we accept OEM & ODM orders, welcome all types of customized orders and cooperation.

Please tell me:
What product specifications do you need? when you ask for a quotation.I will give you the most
competitive price per as your requirements. And we have many types for you to choose.

P.S.:If you can't find any products to meet your requirements. welcome to send us the details
drawings so that we can provide us our professional & best service to you.
