10x85mm Low Voltage Fuse Holder 1500 Volt PVAH Series RoHS Compliant

10 x 85mm PVAH Series 1500V Fuse Holder Low Voltage Fuse Holder

BH300 touch safe fuse holders are designed
for standard 10x85mm PV fuses such as ADLER A75
series and other cylindrical fuses up to Ø14 x 85mm.
With current ratings up to 30A at 1500V DC, it can
effectively protect 1500V DC circuits and equipment in
photovoltaic applications.

Note: SCCR is limited to the interrupting rating of the
installed fuse or 50kA, which ever is less.

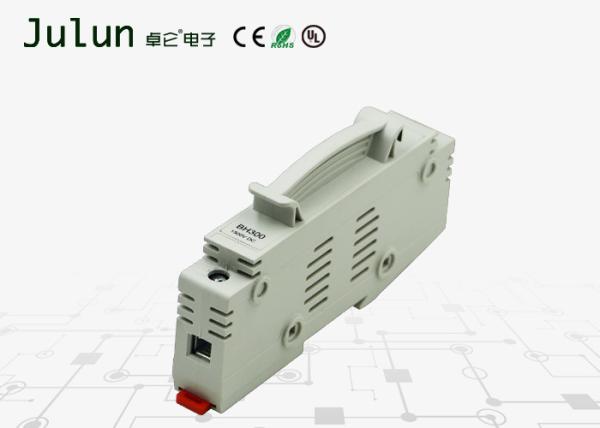

The BH300 touch safe holder is designed for
10x85mm fuse links, especially for use with
photovoltaic equipment.

Rated Voltage: 1500V DC
Rated Current: ~30A
Short Circuit Current Rating(SCCR): 50kA
Manufacturing Standards: UL4248-18-2;RoHS compliant
Material Flammability: UL 94-V0 (PBT)/UL91-V2 (PA6)
Mounting: DIN Rail mounting
Wire Range Ø:2.0mm2 - 13.3mm2
Operation Temperature: -40°C ~ +150°C

Q: Are you trading company or manufacturer ?
A: We are a fuse and fuse holder factory.
Q: How long is your delivery time?
A: Generally it is 3 days if the goods are in stock. Or it is 5-10 days if the goods are not in

stock, according to the quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: 100% in advance, T/T.

Please tell me:
What product specifications do you need? when you ask for a quotation.I will give you the most

competitive price per as your requirements. And we have many types for you to choose.

P.S.:If you can't find any products to meet your requirements. welcome to send us the details

drawings so that we can provide us our professional & best service to you.
